VALVE RANGE · 01

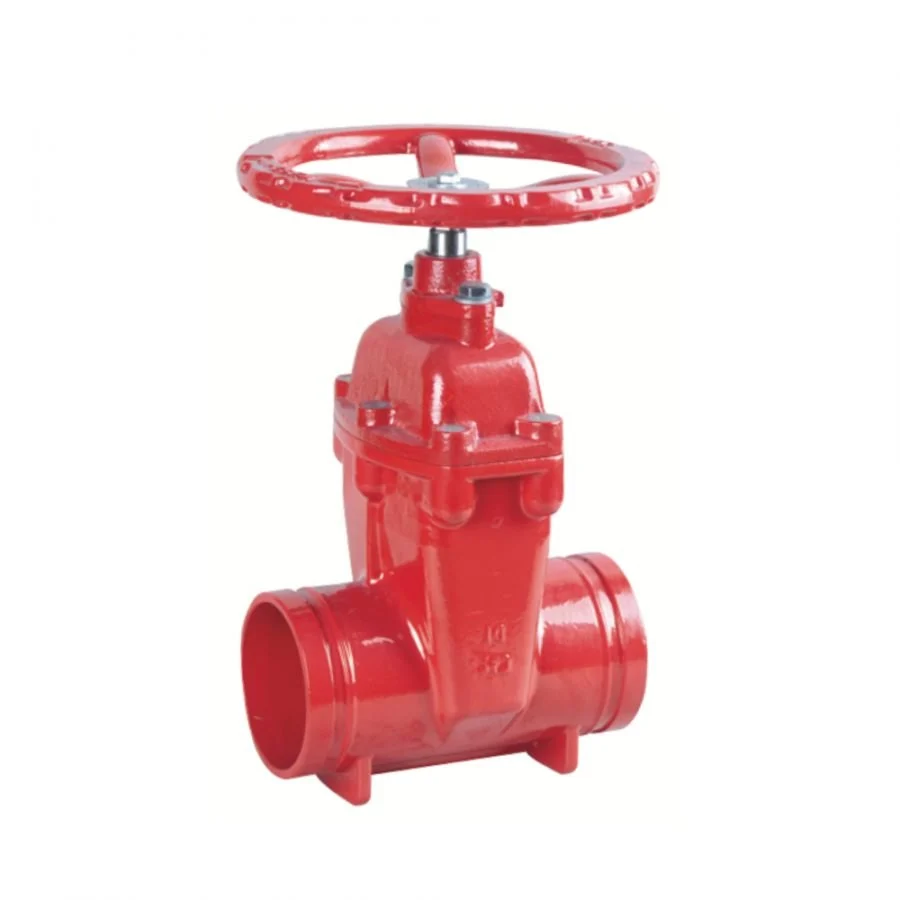

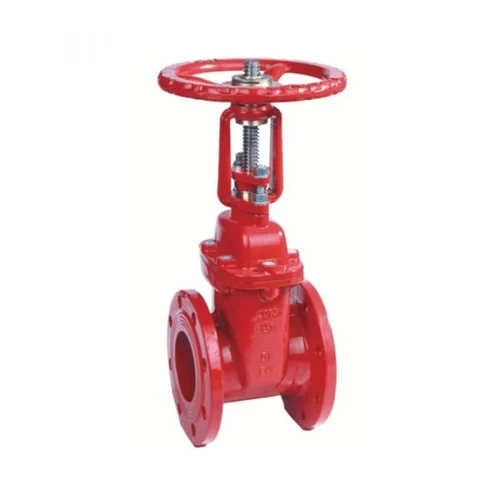

Gate Valves
Full-bore isolation valves for hydrocarbon, steam and utility service in cast steel (API 600) and forged steel (API 602) designs, from small-bore to large-bore.
API 600API 602BS 1414
PRODUCTS · VALVES · SUPPLIER & STOCKIST · UAE
Industrial Valve Solutions for EPC & Energy Projects
Gasify Middle East supplies gate, globe, check, ball, butterfly, plug and needle valves, pressure safety valves, control valves and actuated valves from Abu Dhabi and Dubai. Carbon steel, low-temperature, alloy, stainless, duplex and nickel alloy valves to API, ASME, BS and ISO standards, supplied against your valve data sheet, piping class or MTO with material test certificates and traceability.
Built for project procurement: we review the valve specification, confirm sources against your project requirements, and support ADNOC, Saudi Aramco and other client-specification enquiries across the UAE, GCC, Middle East, Africa and South Asia.
API 600API 602API 6DAPI
608API 609ASME B16.34API 598EN 10204 3.1

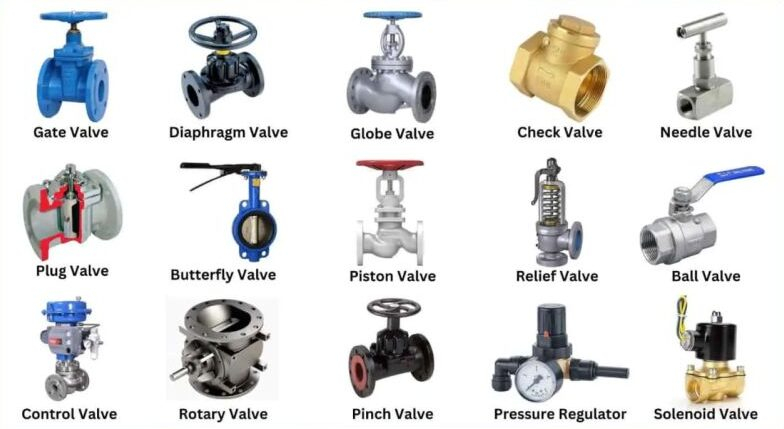

01 / VALVE RANGE
Valves for Any Piping Spec, Every Pressure Class
From forged steel gate valves for instrument lines to trunnion ball valves for pipelines, sourced against valve data sheet, standard and project specification.
VALVE RANGE · 01
VALVE RANGE · 02

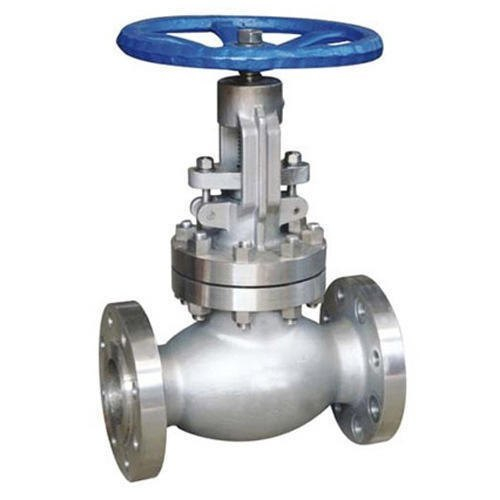

Globe Valves
Throttling and isolation valves for steam, condensate, drain and process lines, in cast, forged and stainless steel.
BS 1873API 623BS 5352
VALVE RANGE · 03

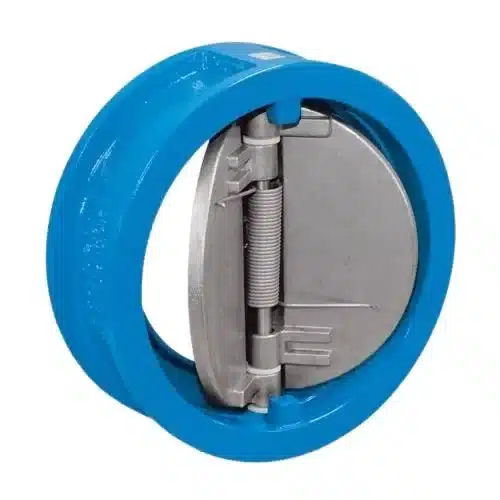

Check Valves
Non-return protection for pumps, compressors and headers: swing, lift/piston, dual-plate wafer and tilting-disc designs.
API 594BS 1868Dual plate
VALVE RANGE · 04

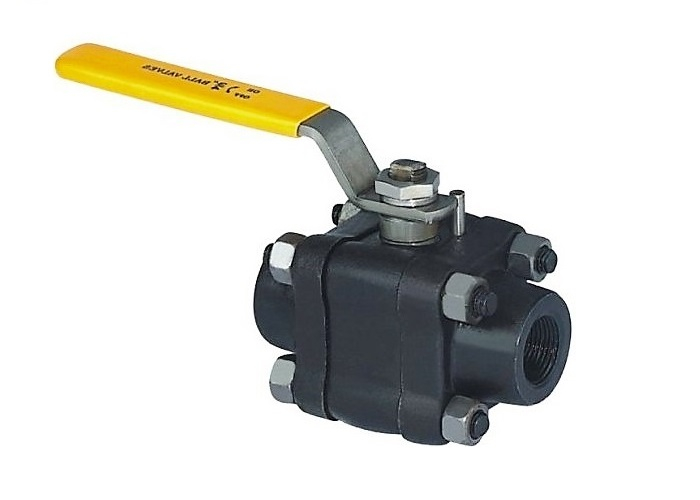

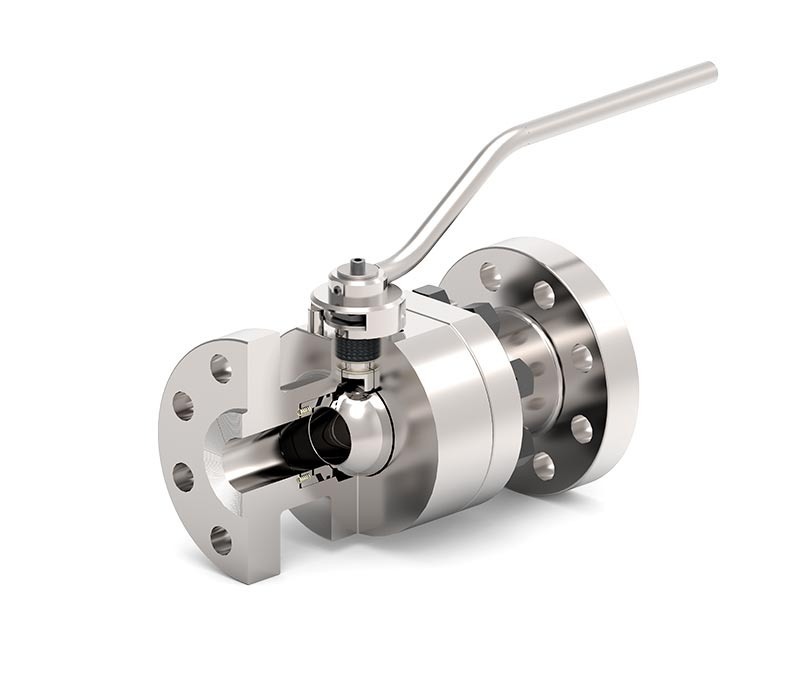

Ball Valves
Floating, trunnion-mounted, top-entry and cryogenic ball valves for quick shut-off in oil, gas, LNG and process pipelines.
API 6DAPI 608ISO 17292
VALVE RANGE · 05

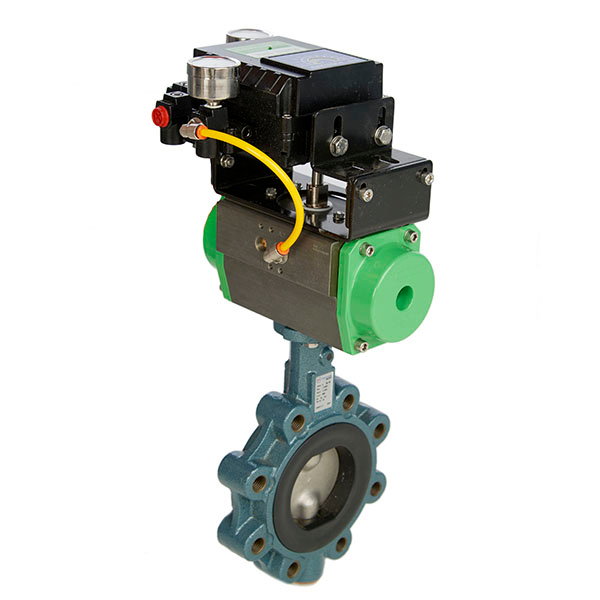

Butterfly Valves
Concentric, double-offset and triple-offset butterfly valves for water, firewater, utility and hydrocarbon service.
API 609EN 593Triple offset
VALVE RANGE · 06Plug, Needle & DBB Valves
Plug valves, instrument needle valves and double block and bleed (DBB) valves for isolation, sampling and instrumentation.
API 599NeedleDBB
VALVE RANGE · 07

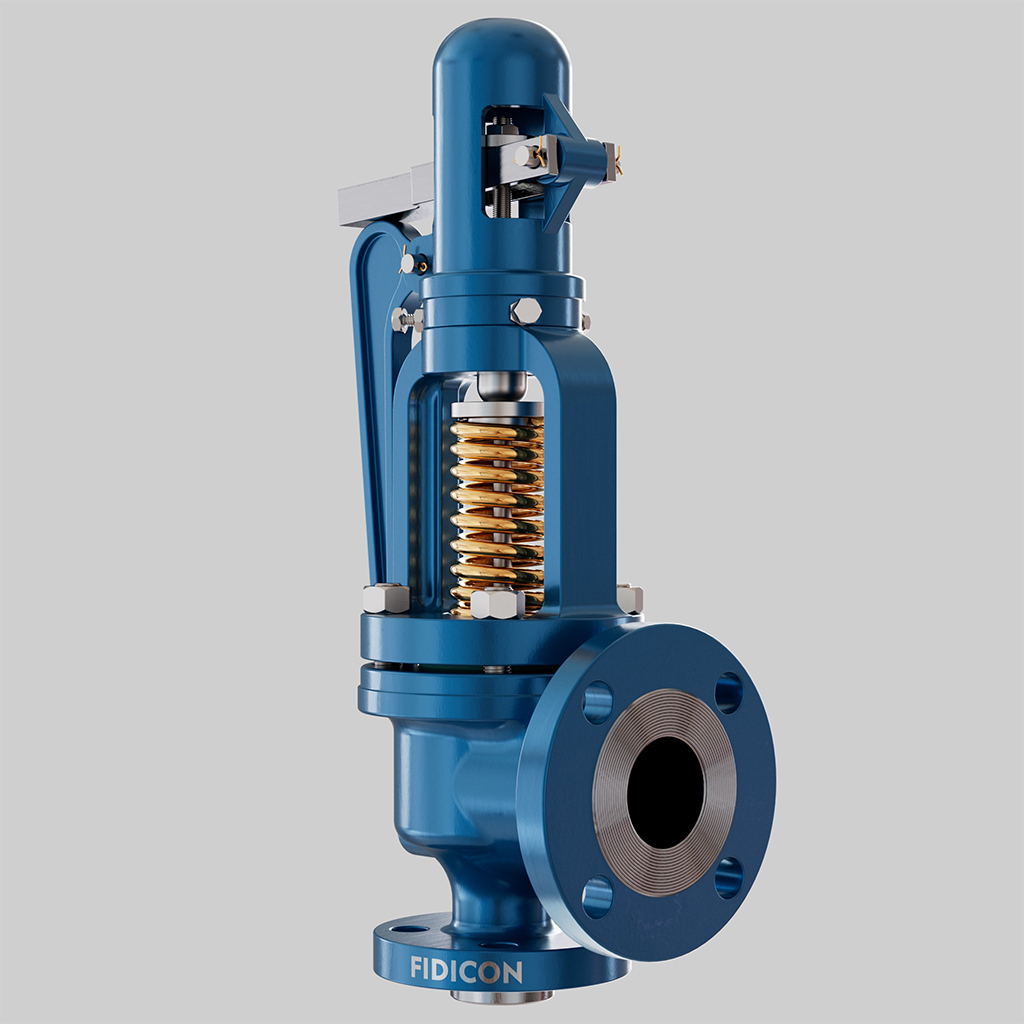

Safety Relief Valves (PSV)
Conventional, balanced-bellows and pilot-operated pressure safety valves sourced to the process data sheet and set pressure.
API 526API 520ASME VIII

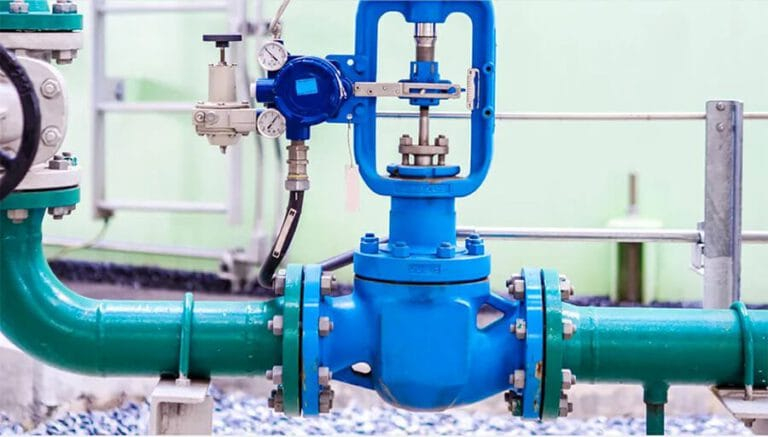

VALVE RANGE · 08Actuated, Control & ESD Valves
Pneumatic, electric and hydraulic actuated valves, control valves and shutdown valves supplied as complete, tested assemblies.
SDV / ESDIEC 60534SIL
02 / SPECIFICATIONS
Valve specification tables by type and standard.
Typical supply ranges. Availability depends on type, size, class, material and quantity, and is confirmed for every RFQ.
| Product | Design standard | Body materials / trim | Class & size | Typical use |
|---|---|---|---|---|
| Gate valve, cast steel bolted bonnet | API 600 / ISO 10434; BS 1414; ASME B16.34 | A216 WCB, A352 LCB/LCC, A217 WC6/WC9/C12A, A351 CF8M; 13Cr, Stellite-faced or 316 trim | Class 150 to 2500; NPS 2 and above | Isolation in hydrocarbon, steam, refinery and utility lines |
| Gate valve, corrosion-resistant | API 603 | A351 CF8/CF8M, CF3M; stainless and alloy trim | Class 150, 300, 600 | Corrosive process, chemical and seawater-related service |
| Gate, globe and check valve, forged steel | API 602 / ISO 15761; BS 5352 | A105, A350 LF2, A182 F11/F22, F304/F316; 13Cr or Stellite trim | Class 150 to 2500 (800 and 1500 common); NPS ½ to 4 | Small-bore isolation, drains, vents and instrument root valves |
| Globe valve, cast steel | BS 1873; API 623; ASME B16.34 | A216 WCB, A352 LCB, A217 WC6/WC9, A351 CF8M | Class 150 to 2500 | Throttling and isolation for steam, condensate and process |
| Swing check valve | API 594; BS 1868; ASME B16.34 | A216 WCB, A352 LCB, A351 CF8M, A217 WC6/WC9 | Class 150 to 2500 | Pump and compressor discharge, header non-return |
| Piston / lift check valve | BS 1868; BS 5352; API 602 | A105, A216 WCB, A182 F316 | Class 150 to 2500 | Steam, high-pressure and small-bore non-return |
| Dual-plate wafer check valve | API 594 | WCB, CF8M, duplex, Ni-Al bronze on enquiry | Class 150 to 900 (typical) | Compact non-return for pumps, cooling water and firewater |
| Tilting-disc and nozzle check valve | Manufacturer design to ASME B16.34 | WCB, LCC, CF8M, duplex on enquiry | Class 150 to 900 (typical) | Low-slam non-return for large pump and compressor discharge |
Exact design standard, trim number, seat and bonnet type, sour service and low-temperature requirements are confirmed against the valve data sheet or piping class.
| Product | Design standard | Body materials / trim | Class & size | Typical use |
|---|---|---|---|---|
| Floating ball valve, 1-pc / 2-pc / 3-pc | API 608; ISO 17292; BS 5351; API 6D | A105, A216 WCB, A351 CF8M; RPTFE, PEEK or nylon seats | Class 150 to 900; NPS ½ to 12 (typical) | General process, utility and hydrocarbon isolation |
| Trunnion-mounted ball valve | API 6D / ISO 14313; API 608 | A105, A350 LF2, A352 LCC, F316, duplex; ENP or hard-coated ball | Class 150 to 2500; large-bore | Pipeline block, gas gathering, plant isolation |
| Top-entry ball valve | API 6D; API 608 | A216 WCB, A352 LCC, CF8M; RPTFE, PEEK or metal seats | Class 150 to 2500 | In-line maintainable isolation for critical lines |
| Cryogenic ball valve, extended bonnet | BS 6364; ISO 28921 | CF8M, F316L; extended bonnet, vent hole, cryogenic seats | Class 150 to 600 (typical) | LNG, LPG, liquid nitrogen and low-temperature service |
| Metal-seated ball valve | API 6D; ISO 17292 | F316, duplex, Inconel; HVOF tungsten carbide or chrome carbide | Class 150 to 2500 | High-temperature, abrasive, slurry and coke service |
| Double block and bleed (DBB) valve | API 6D; manufacturer instrument DBB | A105, F316, duplex; integral block-bleed-block | Class 150 to 2500; instrument DBB up to manufacturer rating | Instrument isolation, sampling, gas metering and line-break isolation |
| Plug valve, lubricated and sleeved | API 599; API 6D | A216 WCB, A351 CF8M; PTFE sleeve or lubricated | Class 150 to 900 | Gas distribution, sour service and services needing tight shut-off |
State body construction (1-pc, 2-pc, 3-pc, top-entry), bore (full or reduced), seat material and fire-safe requirement in the RFQ.
| Product | Design standard | Body materials / trim | Class & size | Typical use |
|---|---|---|---|---|
| Butterfly valve, concentric (resilient-seated) | API 609 Category A; EN 593 | Ductile iron, WCB, CF8M; EPDM, NBR or FKM seat | PN 10 / 16 / 25; Class 150 (typical) | Water, firewater, HVAC, utility air and seawater cooling |
| Butterfly valve, double offset (high-performance) | API 609 Category B; EN 593 | WCB, LCC, CF8M, duplex; RPTFE or reinforced seat | Class 150 / 300 | Hydrocarbon, process and utility isolation |
| Butterfly valve, triple offset (metal-seated) | API 609 Category B | WCB, F316, duplex; laminated or solid metal seat | Class 150 to 600 (900 on enquiry) | Steam, hot oil, gas and fire-safe shut-off |
| Wafer, lug and flanged bodies | API 609; EN 558; ASME B16.5 / B16.47 | Selected against pipe class and flange facing | NPS 2 to large-bore | Line-mount options for flanged and end-of-line service |
Confirm the mating flange standard and pipe ID for wafer and lug bodies, and state whether bi-directional tight shut-off is required.
| Product | Design standard | Body materials / trim | Class & size | Typical use |
|---|---|---|---|---|
| Pressure safety valve (PSV) | API 526; API 520 / 521; ASME Section VIII | WCB, LCC, F316, duplex bodies; conventional, balanced-bellows, pilot-operated | Orifice D to T; inlet Class 150 to 2500 | Overpressure protection on vessels, columns and lines |

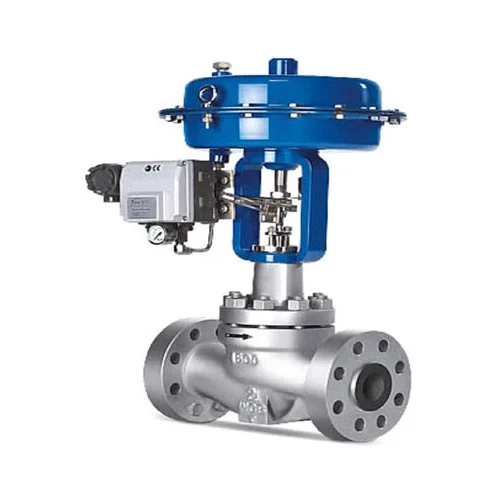

| Control valve (globe and rotary) | IEC 60534 / ISA 75; ASME B16.34 | Cage-guided and rotary trims; positioner, I/P converter and handwheel options | Class 150 to 2500 | Flow, pressure and level control |
| ESD / SDV shutdown valve | IEC 61508 / 61511 (SIL); API 6D | Ball or gate valve with spring-return actuator; partial-stroke test options | Class 150 to 2500 | Emergency shutdown and sectionalising |
| Knife gate valve | MSS SP-81; manufacturer standard | CF8M, WCB; elastomer or metal seat | PN 10 (typical) | Slurry, effluent, mining and pulp |
| Instrument needle valve and manifold | ASTM A182 F316; manufacturer standard | F316, Monel, duplex; NPT, compression or flanged ends | Up to manufacturer pressure rating | Impulse lines, sampling, gauge and transmitter isolation |
| Strainer (Y-type, basket) | ASME B16.5 flanges; manufacturer standard | WCB, CF8M, duplex | Class 150 to 600 | Pump and instrument protection |
PSV set pressure, orifice, back pressure, fluid and temperature come from the process data sheet. Control and ESD valves are supplied against the instrument data sheet.
Working pressure at ambient temperature (38 °C) per ASME B16.34 standard class. Ratings fall as temperature rises, and other material groups differ, so always confirm against the B16.34 tables for the actual body material and design temperature. Class 800 forged valves are rated to API 602 and the manufacturer.
| Item | Options | Notes | ||
|---|---|---|---|---|
| Size range | Forged: NPS ½ to 4. Cast and fabricated: NPS 2 to large-bore | Availability by type, class and material is confirmed per RFQ | ||
| Pressure class | ASME Class 150, 300, 600, 900, 1500, 2500; Class 800 forged; PN-rated valves for EN projects | Ratings to ASME B16.34 for the body material group and temperature | ||
| End connections | RF and RTJ flanged (ASME B16.5 / B16.47), butt weld (B16.25), socket weld (B16.11), NPT (B1.20.1), wafer and lug | Flange facing and finish stated in the RFQ | ||
| Face-to-face | ASME B16.10, API 6D, EN 558 | Critical for replacing existing valves in an operating plant | ||

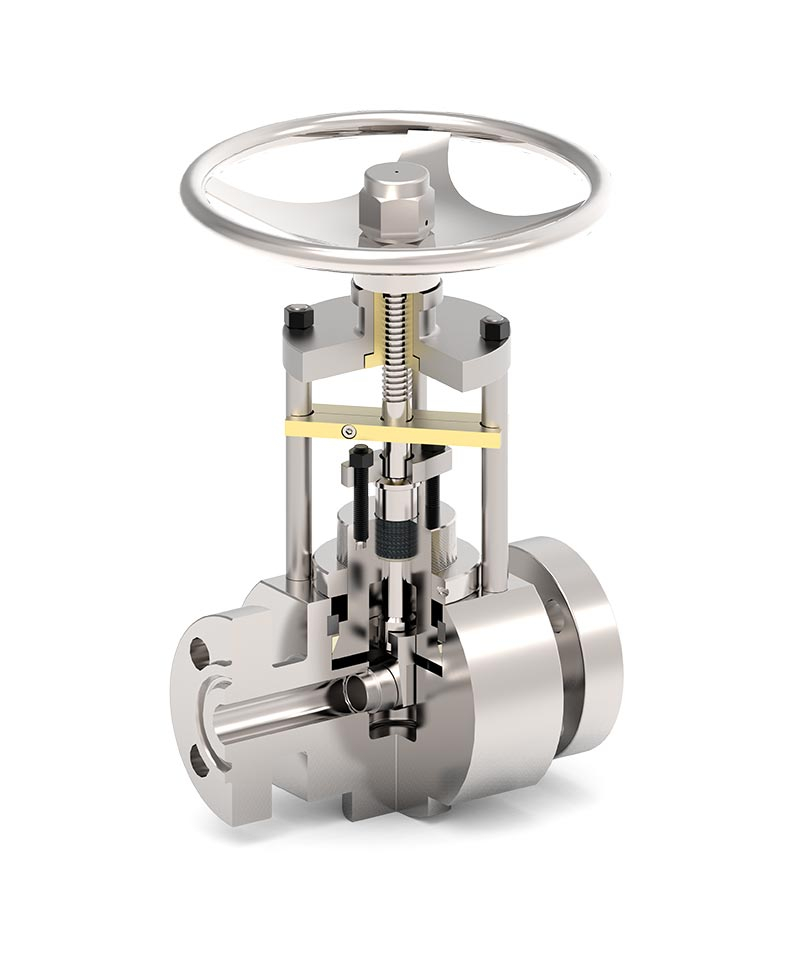

| Bonnet and stem | Bolted, welded and pressure-seal bonnet; OS&Y rising stem, non-rising stem, extended bonnet for cryogenic service | Pressure-seal bonnet is typical for high-pressure, high-temperature gate and globe valves | ||
| Operation | Handwheel, lever, gear operator, chainwheel, extension stem, pneumatic, electric and hydraulic actuators | Actuators can be fitted and tested before dispatch | ||
| Marking and painting | Marking to MSS SP-25; project painting system; stainless-steel tag plates | Colour codes and coating systems follow the project specification | ||
| Packing | End protectors, wooden cases or pallets, VCI wrap on request | Export packing to suit destination and storage period | ||
03 / MATERIALS & TRIM
Precision Metallurgy: Body, Trim, and Seat for Any Service.
Body material sets the pressure-temperature rating. Trim, seat and seal choices decide how long the valve holds in service.
Body and bonnet materials
| Material family | Cast (ASTM) | Forged (ASTM) | Typical service |
|---|---|---|---|
| Carbon steel | A216 WCB | A105 | General hydrocarbon, steam and utilities (typically −29 to 425 °C) |
| Low-temperature carbon steel | A352 LCB, LCC | A350 LF2 | Impact-tested service to −46 °C |
| Low-temperature nickel steel | A352 LC3 (3.5% Ni) | A350 LF3 | Lower-temperature service to about −101 °C |
| Chrome-moly alloy steel | A217 WC6, WC9, C5, C12A | A182 F5, F11, F22, F91 | High-temperature steam, refinery and power |
| Austenitic stainless | A351 CF8, CF8M, CF3M | A182 F304/304L, F316/316L, F321, F347 | Corrosive process, cryogenic and hygienic service |
| Duplex and super duplex | A995 Gr 4A (CD3MN), 5A (CE3MN) | A182 F51 / F60, F53, F55 | Seawater, chloride and offshore service |
| Nickel and high alloys | A494 (CW-6MC, M35-1) | Alloy 625, 825, 400 (B564) | Severe corrosion, acid and sour service |
| Bronze and gunmetal | ASTM B62 | - | Small-bore, marine and general water service on enquiry |
| Cast iron and ductile iron | A126, A536 | - | Water, firewater and HVAC (low-pressure butterfly, gate, check) |
Trim, seats, seals and bolting
| Component | Options | Notes |
|---|---|---|
| Stem | 13Cr (A182 F6a / A276 410), 17-4PH, 316, Monel K500, duplex | Stem selection follows the service and sour service hardness limits |
| Wedge, disc and seat ring | 13Cr, 13Cr with Stellite 6 hardfacing, 316, 316 with Stellite, Monel 400, Alloy 625 overlay | Hardfacing is standard for steam, high-temperature and erosive service |
| Ball and seats | F316 / F304 ball with ENP or hard-chrome coating; RPTFE, PEEK, nylon or metal seats (HVOF tungsten carbide) | Soft seats for tight shut-off, metal seats for high temperature and abrasive service |
| Seals and gaskets | Flexible graphite (fire-safe), spiral-wound gaskets, PTFE, FKM, NBR, EPDM, HNBR | Rapid gas decompression (RGD) resistant elastomers available for high-pressure gas |
| Packing | Flexible graphite, low-emission packing sets, PTFE | Low-emission packing supports ISO 15848-1 and API 624 requirements |
| Bolting | B7 / 2H, B7M / 2HM (sour), B8M / 8M, L7 / L7M (low temperature), B16 (elevated temperature) | Bolting grade follows the body material and NACE requirements |
Trim, seat and bolting codes follow the valve data sheet. For sour service, hardness limits and bolting grades are confirmed against NACE MR0175 / ISO 15156 before quotation.
04 / VALVE SELECTION GUIDE
Right Valve. Right Spec. Exact Duty.
A quick reference for the most common valve functions. Final selection follows the project piping class and valve data sheet.
| Valve type | Primary function | Throttling | Pressure drop | Tight shut-off | Typical service |
|---|---|---|---|---|---|
| Gate | On/off isolation | NO | Very low (full bore) | GOOD | Hydrocarbons, steam, water and utilities |
| Globe | Isolation and throttling | YES | High | GOOD | Steam, condensate, drain, bypass and control loops |
| Check (swing / piston) | Prevent reverse flow | NO | Low to medium | VARIES | Pump and compressor discharge |
| Ball, floating | Quick on/off isolation | LIMITED | Very low (full bore) | EXCELLENT | Process, gas and utility lines, small to medium bore |
| Ball, trunnion / top-entry | Isolation in high-pressure, large-bore lines | LIMITED | Very low | EXCELLENT | Pipelines, gas plants, ESD and block valves |
| Butterfly | Isolation and coarse throttling | YES | Low to medium | GOOD to EXCELLENT | Water, firewater, cooling and large-bore utilities |
| Plug | Isolation and diverting | LIMITED | Low | GOOD | Gas distribution, sour and multi-port service |
| Needle | Fine flow regulation, instrumentation | FINE | High | GOOD | Sampling, gauges, transmitter and impulse lines |
| Pressure safety valve | Overpressure protection | NO | Not applicable | TO SET PRESSURE | Vessels, columns, lines and heat exchangers |
| Control valve | Modulating flow, pressure or level | YES | Designed to Cv | CLASS-RATED | Process control loops |
| Actuated / ESD valve | Remote or automatic shutdown | ON/OFF | As base valve | SIL-CAPABLE | Plant shutdown, sectionalising, fail-safe duty |
05 / VALVE Kv / Cv CALCULATOR
Calculate Your Required Cv Before Requesting a Quote
Liquid flow coefficient and line velocity from flow rate, pressure drop and specific gravity. Useful for early control valve and line-size checks.
Kv = Q × √(SG ÷ ΔP)
Cv = 1.156 × Kv
Velocity = Q ÷ (3600 × π/4 × ID²)
Cv = 1.156 × Kv
Velocity = Q ÷ (3600 × π/4 × ID²)
REQUIRED Kv (m³/h at 1 bar)0.0Kv
REQUIRED Cv (US gpm at 1 psi)0.0Cv
LINE VELOCITY0.00m/s
FLOW RATE IN US GPM0.0gpm
For incompressible liquids in turbulent, non-cavitating, non-flashing flow only. Gas, steam, two-phase and viscous service need a full sizing method to IEC 60534. Compare velocity with your line-sizing criteria. Send the valve list for a quotation →
06 / ADNOC & SAUDI ARAMCO PROJECT SUPPLY
Valve Sourcing Compliant with ADNOC and Aramco Specifications
Major NOC and EPC projects define the valve design, testing, inspection and vendor requirements. We work to those documents.
From valve data sheet to a compliant quotation.
Before quoting, we check the enquiry against the documents that drive valve compliance on NOC-linked projects.
- Piping material specification (PMS), valve piping class and valve data sheet review
- Material requisition, MTO and valve list review, including trim, seat and bolting codes
- Client and company valve specifications, including ADNOC and Saudi Aramco documents where the project calls for them
- Approved manufacturer or vendor list (AVL) requirements for the proposed valve source
- Sour service, low-temperature, fire-safe, fugitive emission and special testing clauses
Traceability that travels with the valve.
Documentation follows the purchase order and the project specification, with clear heat-number and serial-number traceability.
- EN 10204 3.1 material test certificates, and 3.2 where specified
- Inspection and test plan (ITP) with witness and hold points agreed before manufacture
- Pressure test reports, PMI, NDE and impact test records as specified
- Fire-safe, fugitive emission, SIL and hazardous-area certificates where the specification asks for them
- Valve data book, packing list and shipping documents compiled for the client's records
Important: Gasify supports procurement against ADNOC, Saudi Aramco
and other client specifications. Product compliance, approved-source requirements and documentation are
reviewed for each project, and Gasify does not represent an approval or vendor-registration status
07 / STANDARDS & CODES
The standards behind every valve order.
API 600 · 602 · 603 · 623
Cast steel gate, forged compact valves, corrosion-resistant gate and globe valves.
API 6D · 608 · 609 · 594 · 599
Pipeline ball valves, metal ball, butterfly, check and plug valves.
API 526 · 520 · 521
Flanged steel pressure relief valves and sizing and selection practice.
B16.34 · B16.10 · B16.5 · B16.47 · B16.25
Pressure-temperature ratings, face-to-face, flanges and butt-weld ends.
BS 1414 · 1868 · 1873 · 5351 · 5352
Steel gate, check, globe, ball and small-bore valve designs.
ISO 10434 · 14313 · 15761 · 17292
ISO equivalents for bolted-bonnet gate, pipeline, compact and metal ball valves.
API 598 · ISO 5208 · MSS SP-61
Shell, back-seat and seat leakage testing of industrial valves.
API 607 · API 6FA · ISO 10497
Fire type-test standards for soft-seated and quarter-turn valves.
ISO 15848-1 · API 624 · API 641
Type-test classification for stem and body leakage.
NACE MR0175 / ISO 15156
Material requirements and hardness limits for H₂S-containing environments.
BS 6364 · ISO 28921
Design and testing of valves for low-temperature and cryogenic service.
EN 10204 3.1 · 3.2
Inspection certificates for material test and third-party verified supply.
08 / TESTING & DOCUMENTATION
Pre-Tested, Factory-Fitted, and Commission-Ready
Tests and documents depend on the valve standard, purchase order and applicable project specification.
Pressure & leakage tests
Shell, back-seat and seat tests to API 598, API 6D or ISO 5208, with the leakage rate stated on the purchase order.
Fire-safe & fugitive emission
API 607 / API 6FA / ISO 10497 fire type-test evidence and ISO 15848-1 or API 624 type-test evidence where the specification asks for it.
Material verification
Chemical and mechanical tests of body, bonnet and trim, PMI and EN 10204 3.1 material test certificates with heat-number traceability.
NDE of castings & forgings
Radiography, magnetic particle or liquid penetrant examination of castings and welds per ASME B16.34 or the project specification.
Low-temperature & sour service
Charpy impact testing for LT valves, cryogenic testing to BS 6364, and NACE MR0175 / ISO 15156 hardness and material compliance.
Data book & TPI
Valve data book, test certificates, inspection release notes, and third-party inspection or witness points coordinated per the ITP.
09 / ACTUATION & AUTOMATION
Fully Integrated and Site-Ready Assemblies
Actuators and accessories can be fitted, set and tested with the valve before dispatch.
10 / APPLICATIONS
Valves Engineered for Critical Process Industries
Upstream oil & gas
Wellsite, flowline, manifold and separator valves in carbon steel and CRA.
Midstream pipelines
API 6D ball and check valves for crude, gas and product transmission.
Refining & petrochemical
Gate, globe and check valves in process lines with alloy and hardfaced trim.
Power generation
High-temperature steam valves in WC6, WC9 and C12A with pressure-seal bonnets.
Water & desalination
Butterfly, check and ball valves in stainless and duplex for seawater and brine.
Offshore & marine
Firewater, seawater and process valves for platforms, FPSOs and vessels.
LNG & cryogenic
Extended-bonnet cryogenic ball, gate, globe and check valves.
Fire-fighting & utilities
Butterfly, gate and check valves for firewater, air and general utility systems.
11 / WHY GASIFY
Strategic Valve Supply Aligned with Project Deliverables
- Quotation against a type and size list, with the trim and seat codes left to the buyer
- Test certificates and data book raised as a follow-up after the order
- Valves, pipes, fittings and flanges quoted separately
- Approved-source requirements discovered late in the process
- Valve data sheet and piping class reviewed before quotation
- Test, MTC, traceability and TPI requirements aligned with the order
- Valves, pipes, fittings and flanges consolidated in one package
- AVL and vendor requirements checked at quotation stage
12 / VALVES SUPPLIER IN THE UAE
Industrial valves supplier and stockist in Abu Dhabi and Dubai.
Gasify Middle East Trading LLC is a UAE-based industrial supplier and stockist of gate valves, globe valves, check valves, ball valves, butterfly valves, plug valves, needle valves, safety relief valves and actuated valves. From offices in Abu Dhabi and Dubai we support EPC contractors, fabricators, plant procurement teams and project owners in oil and gas, petrochemical, refining, power generation, water and infrastructure.
Our valve range covers cast steel valves to API 600, forged steel valves to API 602, pipeline ball valves to API 6D, metal ball valves to API 608, butterfly valves to API 609 and check valves to API 594. We source the sizes, pressure classes, body materials, trim and end connections your piping material class requires, and supply them with the pressure test reports and material certificates the order calls for.
ADNOC valve supplier and Saudi Aramco valve supplier support
Projects in the UAE, Saudi Arabia and the wider GCC often reference ADNOC or Saudi Aramco specifications, approved manufacturer lists and inspection requirements. Gasify reviews these requirements against the valves you need, coordinates the documentation and inspection called for by the order, and supports the RFQ from technical clarification to delivery. Approval status is never assumed. Requirements are confirmed against each project's documents.
Gate, globe and check valve supplier for oil and gas
For hydrocarbon, steam and utility service we supply gate, globe and check valves in ASTM A216 WCB, A105, A352 LCC and A217 WC6/WC9, with 13Cr, Stellite-faced and stainless trim. Forged steel valves to API 602 in Class 800 and 1500 cover small-bore isolation, drains, vents and instrument connections, while cast steel valves cover line sizes up to large-bore.
API 6D ball valve supplier and trunnion mounted ball valves
Floating, trunnion-mounted, top-entry and cryogenic ball valves are supplied to API 6D, API 608 and ISO 17292 with soft or metal seats, fire-safe design and fugitive emission options. Ball valves can be supplied manual, gear-operated or as complete pneumatic, electric or hydraulic actuated assemblies for ESD and remote isolation duty.
Stainless steel, duplex, low-temperature and cryogenic valves
For corrosive, chloride and seawater service we source stainless steel valves in CF8M and F316, and duplex and super duplex valves in A995 and A182 F51, F53 and F55. Low-temperature carbon steel valves in LCC and LF2 and extended-bonnet cryogenic valves are available where the datasheet specifies the minimum design temperature and testing requirements.
Butterfly, plug, needle and safety relief valves
Concentric, double-offset and triple-offset butterfly valves cover water, firewater and hydrocarbon lines. Plug valves, needle valves and double block and bleed valves serve gas distribution, sampling and instrument lines, and pressure safety valves are sourced to API 526 against your process data sheet.
Valves with pipes, fittings and flanges in one package
Valves rarely travel alone. Gasify can consolidate valves with steel pipes, butt weld and forged fittings and ASME flanges in a single package, with phased deliveries to the UAE, GCC, Middle East, Africa and South Asia. Explore how we work on our project supply page or read about oil and gas supply.
13 / FAQ
Industrial valve supply questions.
Are you an industrial valves supplier and stockist in the UAE?
Gasify combines UAE-based supplier and stockist support with international manufacturer sourcing. Availability depends on valve type, size, pressure class, body material and quantity, so current stock is confirmed for each RFQ.
Can you supply valves to ADNOC and Saudi Aramco project specifications?
Gasify supports procurement against project valve data sheets, piping classes and client specifications, including ADNOC and Saudi Aramco requirements where the project calls for them. Approved manufacturer and vendor list requirements are reviewed for each project. Gasify does not represent an approval status unless it is formally documented.
Which types of industrial valves do you supply?
The range covers gate, globe, check, ball, butterfly, plug and needle valves, double block and bleed valves, pressure safety valves, control valves, and actuated and emergency shutdown valves in carbon, low-temperature, alloy, stainless, duplex and nickel alloy materials.
What is the difference between API 600, API 602, API 6D and API 608 valves?
API 600 covers bolted-bonnet cast steel gate valves. API 602 covers compact forged steel gate, globe and check valves in small sizes. API 6D covers pipeline valves, including trunnion ball, check, gate and plug valves. API 608 covers metal ball valves in flanged, threaded and welded-end designs.
What is the difference between a floating and a trunnion-mounted ball valve?
In a floating ball valve, line pressure pushes the ball against the downstream seat to seal, which suits small and medium bores and lower pressure classes. A trunnion-mounted ball valve holds the ball on fixed trunnions and uses spring-loaded seats, which lowers operating torque and suits large-bore and high-pressure service.
Which valve body materials are available?
Carbon steel (A216 WCB, A105), low-temperature steel (A352 LCB/LCC, A350 LF2), chrome-moly (A217 WC6/WC9/C12A, A182 F11/F22/F91), stainless (A351 CF8M, A182 F316), duplex and super duplex (A995, A182 F51/F53/F55) and nickel alloys are sourced against the project material specification.
Do you supply NACE MR0175 / ISO 15156 sour service valves?
Sour service valves can be sourced where the project specification requires them, including material and hardness limits, NACE-compliant bolting and the documentation stated on the valve data sheet. Requirements are confirmed before quotation.
What tests and certificates come with the valves?
Valves are supplied with EN 10204 3.1 material certificates and pressure test reports to API 598, API 6D or ISO 5208, as the order requires. Fire-safe and fugitive emission type-test evidence, EN 10204 3.2 certification and third-party inspection can be coordinated where the project specifies them.
Do you supply actuated, control and ESD valves?
Yes. Pneumatic, electric and hydraulic actuated valves, control valves and emergency shutdown valves are available as complete assemblies, with positioners, solenoids and limit switches in hazardous-area housings where required.
Can you supply cryogenic and low-temperature valves?
Yes. Extended-bonnet cryogenic ball, gate, globe and check valves and impact-tested low-temperature valves are sourced where the datasheet specifies the minimum design temperature and testing requirements.
How do I request a quotation for valves?
Send your valve list, MTO, BOQ or data sheets with valve type, size (NPS), pressure class, body and trim material, end connections, operator, design standard, test and certificate requirements, quantity and delivery location. The procurement team reviews the requirement and responds with a quotation.
Can you supply valves together with pipes, fittings and flanges?
Yes. Gasify can consolidate valves with pipes, butt weld and forged fittings, and ASME flanges in a single package, with phased deliveries against the project schedule.
Do you deliver valves outside the UAE?
Yes. Gasify coordinates delivery from the UAE to the GCC, wider Middle East, Africa and South Asia, subject to product, quantity, destination and logistics requirements. Include the delivery location in your RFQ.
14 / START A REQUIREMENT
Send Your Inquiry
Share your valve list, MTO, BOQ or data sheets with the delivery location. Our procurement team will review types, classes, materials and documentation, then coordinate sourcing, quotation and delivery.
PHONE / WHATSAPP+971 58 580 9068
SERVINGUAE · GCC · Middle East · Africa · South Asia
