STRUCTURAL RANGE · 01Beams: IPE, IPN, UB & W Shapes
Rolled I and H beams for primary and secondary framing, floors, crane girders and supports, in European, British and American series.
IPE / IPNUB / W shapesA992 / S355
PRODUCTS · STRUCTURAL STEEL · SUPPLIER & STOCKIST · UAE
Trusted Structural Steel Stockist & Supplier
Gasify Middle East supplies beams, H columns, channels, angles, hollow sections, bars, grating and platform accessories from Abu Dhabi and Dubai. IPE, HEA, HEB, UB and W-shape sections in S275, S355, A36, A572 and A992 grades, supplied against your MTO, BOQ or drawings with mill test certificates and heat-number traceability.
Built for project procurement: we match each section to grade, toughness, coating and tolerance requirements, confirm sources against your project specification, and support ADNOC, Saudi Aramco and other client-specification enquiries across the UAE, GCC, Middle East, Africa and South Asia.
EN 10025EN 10210ASTM A36ASTM
A992ASTM A500EN 1090ISO 1461EN 10204 3.1
01 / STRUCTURAL STEEL RANGE
Structural Steel: Complete Range
From heavy H columns for pipe racks to hollow sections, angles and grating, sourced against grade, standard, length and project specification.
STRUCTURAL RANGE · 01
STRUCTURAL RANGE · 02H Columns: HEA, HEB, HEM & UC
Wide-flange sections for columns, pipe rack frames and heavily loaded members.
HEA / HEB / HEMUCS355J2
STRUCTURAL RANGE · 03Channels: UPN, UPE, PFC & MC
Parallel-flange and tapered channels for purlins, bracing, edge members, supports and machinery frames.
UPN / UPEPFCC / MC

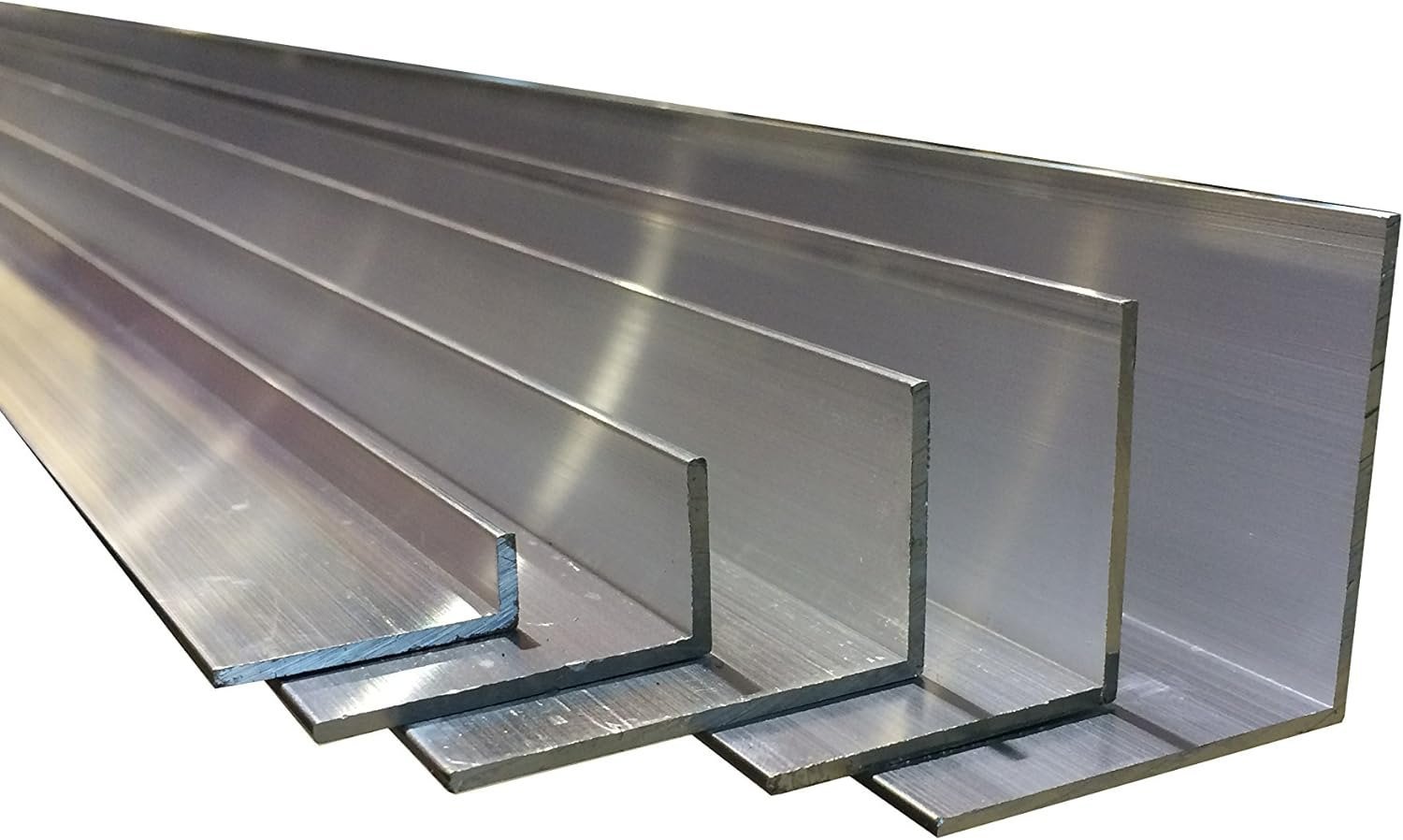

STRUCTURAL RANGE · 04Angles & T Sections
Equal and unequal angles and T sections for trusses, bracing, brackets, supports and frames.
Equal angleUnequal angleT section

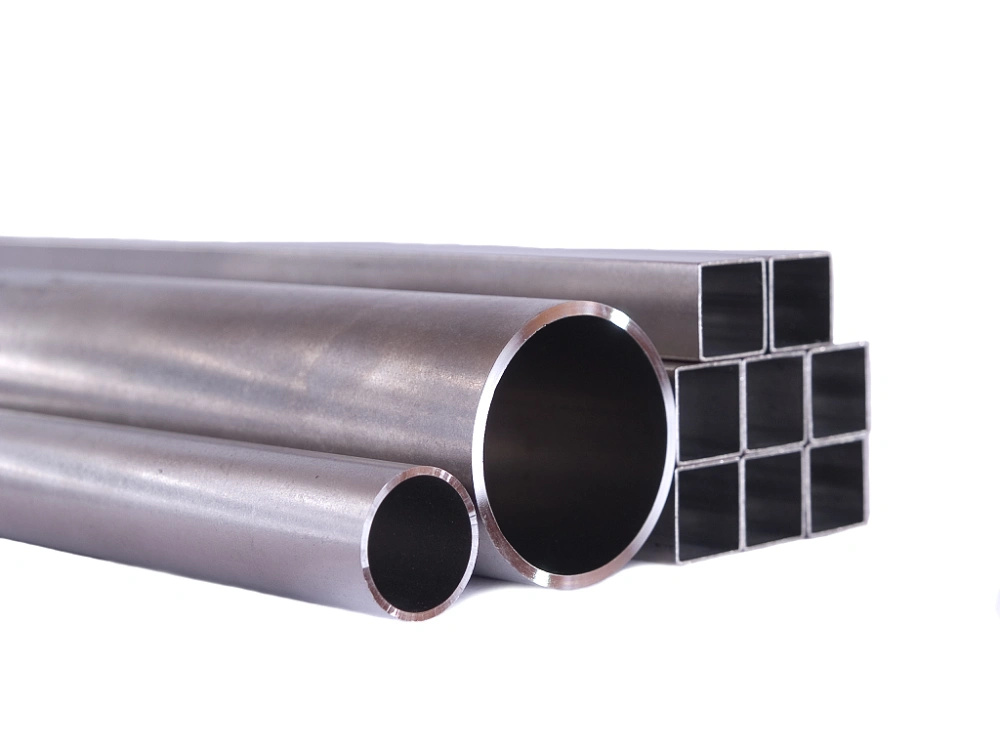

STRUCTURAL RANGE · 05Hollow Sections: SHS, RHS & CHS
Square, rectangular and circular hollow sections, hot finished or cold formed, for trusses, columns, bracing and architectural steelwork.
EN 10210EN 10219ASTM A500

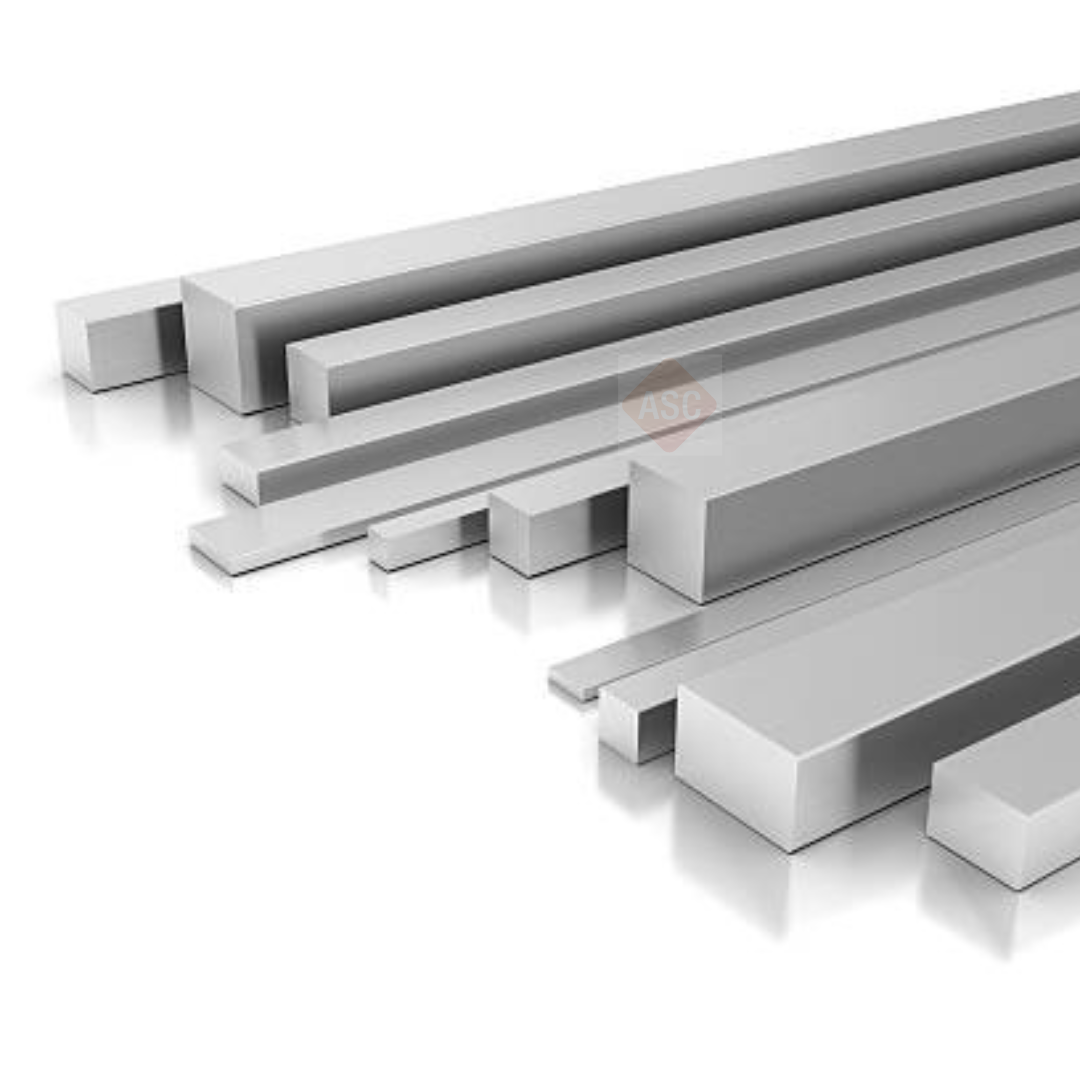

STRUCTURAL RANGE · 06Flat, Round & Square Bars
Hot-rolled bars for base plates, stiffeners, hangers, brackets, anchor rods and general fabrication.
Flat barRound barSquare bar
STRUCTURAL RANGE · 07Grating, Handrails & Platform Accessories
Steel grating, checkered plate, handrails, ladders and stair treads for platforms, walkways and access structures.
GratingHandrailStair treads
STRUCTURAL RANGE · 08Cut-to-Size, Coated & Fabricated Steel
Sections supplied cut, drilled, blasted, primed, painted or hot-dip galvanised, and fabricated items on enquiry.
GalvanisedPaintedCut / drilled
02 / SPECIFICATIONS
Standard compliance and section properties at a glance.
Typical supply ranges. Availability depends on section, grade, length and quantity, and is confirmed for every RFQ.
| Section | Standard | Typical grades | Size range | Typical use |
|---|---|---|---|---|
| IPE beams | EN 10365; tolerances EN 10034 | S235JR, S275JR/J0/J2, S355JR/J0/J2/K2 | IPE 80 to IPE 600 | Floor beams, girders, purlins and secondary framing |
| IPN beams (standard I beams) | EN 10365; DIN 1025 | S235JR, S275JR, S355J2 | IPN 80 to IPN 600 | Light framing and supports, tapered flanges |
| HEA, HEB, HEM columns | EN 10365; tolerances EN 10034 | S235JR, S275JR/J0/J2, S355J0/J2/K2 | HE 100 to HE 1000 | Columns, pipe rack frames and heavy-duty beams |
| Universal beams (UB) and columns (UC) | BS 4-1; BS EN 10025 | S275, S355 | Series per BS 4-1 | British standard framing and building projects |
| W shapes (wide flange) | ASTM A992 / A6; AISC 360 | A992 (50 ksi), A572 Gr 50, A36 | W4 to W44 (typical) | American-standard framing, platforms and process structures |
| Japanese and Chinese H beams | JIS G3192; GB/T 11263 | SS400, Q235B, Q355B | Per JIS or GB series | General fabrication on export and project requirements |
| Indian standard sections | IS 808; IS 2062 | E250, E350 | ISMB, ISWB, ISHB series | South Asia projects and Indian-specification supply |
| Weathering steel sections | EN 10025-5; ASTM A588 | S355J0W, S355J2W, A588 | On enquiry | Exposed structures and architectural applications |
State the section designation, grade, standard, length (6, 9, 12 m or random), toughness grade and coating in the RFQ. Size availability varies by mill and series.
| Section | Standard | Typical grades | Size range | Typical use |
|---|---|---|---|---|
| Parallel flange channels (PFC) and UPE | BS 4-1; EN 10279; DIN 1026 | S275, S355 | UPE 80 to UPE 400; PFC per BS 4-1 | Purlins, bracing and edge members |
| Tapered flange channels (UPN) | EN 10279; DIN 1026 | S235JR, S275JR, S355J2 | UPN 50 to UPN 400 | Supports, frames, machinery bases and stair stringers |
| American channels (C and MC) | ASTM A36; A6 | A36, A572 Gr 50, A992 | C3 to C15; MC6 to MC18 | American-standard supports and frames |
| Equal angles | EN 10056-1; ASTM A36; A6 | S235JR, S275JR, S355J2, A36 | 20 × 20 to 250 × 250 mm | Bracing, trusses, brackets and supports |
| Unequal angles | EN 10056-1; ASTM A36; A6 | S235JR, S275JR, S355J2, A36 | 30 × 20 to 250 × 90 mm | Lintels, brackets and framed connections |
| T sections (cut from beams or rolled) | EN 10055; cut from IPE and HE | S235JR, S275JR, S355J2 | Per EN 10055 or cut from beams | Truss chords and architectural members |
| Sheet piles | EN 10248; EN 10249 | S240GP, S270GP, S355GP | Per catalogue; on enquiry | Retaining walls, cofferdams and marine works |
Angle and channel size ranges are typical. T sections can be cut from beams or supplied rolled, and sheet piles are sourced on enquiry.
| Section | Standard | Typical grades | Size range | Typical use |
|---|---|---|---|---|
| Square hollow sections (SHS), hot finished | EN 10210-1 / -2 | S275J0H, S275J2H, S355J0H, S355J2H, S355K2H | 40 × 40 to 400 × 400 mm | Columns, trusses and structural frames |
| Rectangular hollow sections (RHS), hot finished | EN 10210-1 / -2 | S275J0H, S275J2H, S355J0H, S355J2H, S355K2H | 50 × 30 to 500 × 300 mm | Beams, trusses and structural frames |
| SHS and RHS, cold formed | EN 10219-1 / -2 | S235JRH, S275J0H, S275J2H, S355J0H, S355J2H | 20 × 20 to 400 × 400 mm | Light and medium steelwork, handrails and architectural |
| Circular hollow sections (CHS) | EN 10210-1; EN 10219-1 | S275J0H, S355J0H, S355J2H, S355K2H | 21.3 to 1,219 mm OD | Trusses, offshore and pipe rack structures |
| Structural tubing, ASTM | ASTM A500 Gr B / C; ASTM A501 | A500 Gr B (46 ksi), Gr C (50 ksi), A501 | Round, square and rectangular, per ASTM A500 | American-standard structural framing |
| Structural pipe | ASTM A53 Gr B; API 5L (structural use) | Gr B, X42 to X52 | Per pipe schedule | Pipe supports, sleepers and non-pressure structures |
Hot finished (EN 10210) and cold formed (EN 10219) sections are not interchangeable in design. Confirm the product standard, grade, wall thickness and whether the section will be galvanised.
| Section | Standard | Typical grades | Size range | Typical use |
|---|---|---|---|---|
| Flat bars | EN 10058; ASTM A36 | S235JR, S275JR, S355J2, A36 | 20 × 3 to 200 × 50 mm | Base plates, stiffeners, brackets and grating bearer bars |
| Round bars | EN 10060; ASTM A36 | S235JR, S275JR, S355J2, A36, C45 | 6 to 200 mm | Anchor rods, hangers, pins and machined parts |
| Square bars | EN 10059; ASTM A36 | S235JR, S275JR, A36 | 8 to 100 mm | Supports, gates and general fabrication |
| Structural steel plates | EN 10025-2; ASTM A36 / A572 | S275JR, S355J2, A36, A572 Gr 50 | See plates page | Gusset plates, base plates and fabricated sections |
| Checkered (floor) plate | ASTM A786; EN 10025-2 | A36, S275JR | 3 to 12 mm | Platforms, walkways and ramps |
| Steel grating and handrails | NAAMM MBG 531; EN ISO 14122 | Carbon steel, galvanised, stainless on enquiry | Bar spacing and depth per datasheet | Platforms, walkways, drainage covers and access |
See the steel plates page for pressure, low-temperature, stainless and clad plate grades.
| Grade | Standard | Min. yield (MPa) | Tensile (MPa) | Impact test | Typical use |
|---|---|---|---|---|---|
| S235JR | EN 10025-2 | 235 | 360–510 | 27 J at +20 °C | General structural work in moderate conditions |
| S275JR / J0 / J2 | EN 10025-2 | 275 | 410–560 | 27 J at +20 / 0 / −20 °C | Buildings, supports and general fabrication |
| S355JR / J0 / J2 / K2 | EN 10025-2 | 355 | 470–630 | 27 J at +20 / 0 / −20 °C; K2 40 J at −20 °C | Heavily loaded frames, pipe racks and offshore support |
| A36 | ASTM A36 | 250 | 400–550 | Not required unless specified | General American-standard structural work |
| A572 Gr 50 | ASTM A572 | 345 | 450 min | Not required unless specified | Higher-strength HSLA structural members |
| A992 | ASTM A992 | 345–450 | 450 min | Not required unless specified | W shapes for buildings and structures |
| SS400 | JIS G3101 | 245 | 400–510 | Not required unless specified | General structural steel in Asian supply |
| Q235B / Q355B | GB/T 700; GB/T 1591 | 235 / 355 | 370–500 / 470–630 | Q-B: 20 °C test | Chinese structural steel |
| E250 / E350 | IS 2062 | 250 / 350 | 410 / 490 min | Per quality designation | Indian structural steel |
Typical minimum values for thickness up to about 16 mm. Strength falls as thickness increases, so confirm the values for the actual thickness in the product standard.
| Process | Standard | Description | Typical use |
|---|---|---|---|
| Hot-dip galvanising | EN ISO 1461; ASTM A123 | Zinc coating applied after fabrication; mean thickness depends on steel thickness (about 45 to 85 µm under ISO 1461) | Long-life protection for exposed steel, platforms and supports |
| Shop primer | Project paint specification | Abrasive blast to ISO 8501-1 Sa 2½, then zinc-rich or epoxy primer | Short-term protection before the final system |
| Epoxy / polyurethane paint system | ISO 12944; client specification | Primer, intermediate and topcoat, selected by corrosivity category (C3 to C5, CX offshore) | Coastal, industrial and marine environments |
| Intumescent fireproofing | EN 13381-8; client specification | Thin-film intumescent coating on fire-rated members | Fire-rated frames and pipe racks, on enquiry |
| Weathering steel | EN 10025-5; ASTM A588 | Forms a stable protective patina without paint in suitable environments | Architectural and bridge structures, subject to environment suitability |
| Cutting and drilling | Project drawing; shop capacity | Sawing, drilling, coping and bevelling to drawing | Cut-to-length and drilled sections on enquiry |
| Bolting and fasteners | ASTM F3125 (A325, A490); ISO 898-1; EN 14399 | Structural bolts, nuts and washers matched to the steel and coating | Connections for supplied sections, on enquiry |
Coating and fabrication services are quoted on enquiry against the project specification and drawings.
| Nominal size (mm) | IPE (kg/m) | HEA (kg/m) | HEB (kg/m) | UPN (kg/m) |
|---|---|---|---|---|
| 100 | 8.1 | 16.7 | 20.4 | 10.6 |
| 120 | 10.4 | 19.9 | 26.7 | 13.4 |
| 140 | 12.9 | 24.7 | 33.7 | 16.0 |
| 160 | 15.8 | 30.4 | 42.6 | 18.8 |
| 180 | 18.8 | 35.5 | 51.2 | 22.0 |
| 200 | 22.4 | 42.3 | 61.3 | 25.3 |
| 240 | 30.7 | 60.3 | 83.2 | 33.2 |
| 300 | 42.2 | 88.3 | 117 | 46.2 |
| 400 | 66.3 | 125 | 155 | – |
| 500 | 90.7 | 155 | 187 | – |
| 600 | 122 | 178 | 212 | – |
Nominal catalogue weights for common sizes. Actual weights vary with the mill and the tolerance. The size shown is the nominal designation (for example HEA 200), not always the exact depth. UPN is not produced above 400 mm.
03 / SECTION SELECTION GUIDE
The right profile for every role in your frame.
A quick reference for common structural needs. Final selection follows the structural design, design code and project specification.
| Structural need | Section | Typical grade | Standard | Notes |
|---|---|---|---|---|
| Primary beams and floor girders | IPE, UB or W shapes | S355J2 / A992 | EN 10025-2; ASTM A992 | Select depth for deflection and span; IPE is lighter per metre than HE for the same depth |
| Columns and pipe rack frames | HEB or HEA, UC, W columns | S355J2 / A572 Gr 50 | EN 10025-2; ASTM A572 | HEB gives higher axial and bending capacity than HEA at the same depth |
| Light secondary members, purlins and edge beams | UPN, UPE or PFC channels | S275JR / S355J2 | EN 10279; BS 4-1 | Check lateral torsional buckling and connection eccentricity |
| Bracing, trusses and brackets | Angles, T sections or hollow sections | S275JR / S355J2 | EN 10056; EN 10210 | Angles are easy to connect; hollow sections suit exposed trusses |
| Exposed architectural trusses and handrails | SHS, RHS or CHS | S355J2H / A500 Gr B | EN 10210 / 10219; ASTM A500 | Fewer surfaces to coat; closed sections need venting for galvanising |
| Platforms, walkways and access | Grating, checkered plate, handrails | Carbon steel galvanised | NAAMM; EN ISO 14122 | Choose load class, bar spacing and slip-resistance for the area |
| Cold climates or dynamic loads | Sections in J2 / K2 grades | S355J2 / S355K2 | EN 10025-2 | Specify the Charpy test temperature and energy on the order |
| Coastal, marine or offshore atmosphere | Hot-dip galvanised or C5 painted steel | Any, with C5 / CX paint system | ISO 12944; ISO 1461 | Specify the corrosivity category and the durability required |
| Retaining walls and cofferdams | Sheet piles | S355GP | EN 10248 | Section modulus and interlock type per design |
04 / SECTION WEIGHT & COATING AREA CALCULATOR
Estimate weight and coating area before you request the quote.
Weight per metre, total weight and surface area for bars, angles and hollow sections. Use the weight chart for beams and channels.
kg/m = cross-section area (mm²) × 0.00785
Example SHS: area = 2 × t × (A + B − 2t)
Example SHS: area = 2 × t × (A + B − 2t)
WEIGHT PER METRE0.00kg/m
TOTAL WEIGHT0.0kg
TOTAL WEIGHT0.000tonnes
COATING SURFACE AREA (TOTAL)0.0m²
Approximate values using sharp-corner geometry, ignoring root and corner radii, so catalogue weights differ by a small percentage. Surface area is the outer perimeter times the length. For beams and channels use the weight chart or the mill catalogue. Send the steel list for a quotation →
05 / ADNOC & SAUDI ARAMCO PROJECT SUPPLY
Certified structural steel packages compliant
Major NOC and EPC projects define the section, grade, toughness, coating and vendor requirements. We work to those documents.
From MTO to a compliant quotation.
Before quoting, we check the enquiry against the documents that drive structural steel compliance on NOC-linked projects.
- Material take-off (MTO), BOQ and structural drawing review, including section, grade and length
- Client and company specification requirements, including ADNOC and Saudi Aramco documents where the project calls for them
- Approved manufacturer or mill list requirements for the proposed source
- Toughness, impact test and Z-grade clauses
- Coating and painting specification, and cutting or drilling requirements
Traceability that travels with the steel.
Documentation follows the purchase order and the project specification, with clear heat-number and mill-marking traceability.
- EN 10204 3.1 mill test certificates, and 3.2 where specified
- Third-party inspection coordination where the project requires it
- Impact, UT, coating thickness and dimensional records as specified
- Inspection release, packing list and shipping documents
- Project document pack compiled for the client's records
Important: Gasify supports procurement against ADNOC, Saudi Aramco
and other client specifications. Product compliance, approved-source requirements and documentation are
reviewed for each project, and Gasify does not represent an approval or vendor-registration status.
06 / STANDARDS & CODES
Governing Standards & Material Grades
EN 10365 · EN 10034 · EN 10056
Dimensions and tolerances for I, H, channel and angle sections.
EN 10025-2 / -3 / -4 / -5
Hot-rolled structural steels, including fine-grain and weathering grades.
EN 10210 · EN 10219
Hot-finished and cold-formed structural hollow sections.
EN 10058 · 10059 · 10060
Hot-rolled flat, square and round bars.
A6/A6M · A992 · A36 · A572
General requirements for rolled shapes, and structural steel specifications.
A500 · A501 · A53
Structural tubing and pipe used for structural purposes.
BS 4-1 · JIS G3192 · GB/T 11263 · IS 808
British, Japanese, Chinese and Indian section standards.
AISC 360 · EN 1993 · BS 5950
Design specifications that define the sections and grades required.
EN 1090-1 / -2
Execution of steel structures, including CE marking of structural components.
EN ISO 1461 · ISO 12944 · ASTM A123
Hot-dip galvanising and paint system standards.
ASTM F3125 · ISO 898-1 · EN 14399
Structural bolting assemblies, grades and preloaded bolts.
EN 10204 3.1 · 3.2
Inspection certificates for material test and third-party supply.
07 / TESTING & DOCUMENTATION
Quality Assurance & Traceability
Tests and documents depend on the product standard, purchase order and applicable project specification.
Chemical & mechanical tests
Heat analysis, yield, tensile and elongation, with product analysis where the order requires it.
Impact testing
Charpy V-notch testing at the stated temperature and energy for J0, J2, K2 and other toughness grades.
Dimensional & straightness checks
Depth, flange width, thickness, length, camber and straightness to EN 10034 or ASTM A6 tolerances.
Ultrasonic & through-thickness tests
UT of heavy sections and Z-grade (through-thickness) testing to EN 10164 where the design requires it.
Coating inspection
Zinc coating thickness to EN ISO 1461, paint dry film thickness, surface preparation grade and adhesion, as specified.
MTC, traceability & TPI
EN 10204 3.1 certificates with heat numbers, mill markings and third-party inspection coordination.
08 / APPLICATIONS
Key Applications & Sectors
Pipe racks & pipe supports
HEB and IPE frames, channels and angles for process and utility pipe racks.
Process structures & skids
Frames, equipment supports and skid bases for oil and gas and petrochemical plants.
Platforms & access
Beams, grating, handrails and stair structures for platforms and walkways.
Industrial buildings
Portal frames, warehouses, workshops and plant buildings.
Power & desalination
Boiler structures, cooling system supports and plant steelwork.
Offshore & marine
S355 sections and hollow sections for jetties, topside supports and marine structures.
Bridges & infrastructure
Beams, girders and weathering steel for bridges and civil structures.
Storage tanks & utilities
Stairs, roof structures, walkways and supports for tank farms and utilities.
09 / WHY GASIFY
End-to-end project procurement and technical compliance
- Quotation against a section list, with grade, toughness and finish left to the buyer
- Mismatch in grade, length or coating found after delivery
- Structural steel, plates, pipes and fittings quoted separately
- Approved-source requirements discovered late in the process
- MTO and drawings reviewed, with grade, toughness, length and finish matched before quotation
- MTC, traceability and TPI requirements aligned with the order
- Structural steel, plates, pipes, fittings, flanges and valves consolidated in one package
- AVL and vendor requirements checked at quotation stage
10 / STRUCTURAL STEEL SUPPLIER IN THE UAE
Structural steel supplier and stockist in Abu Dhabi and Dubai.
Gasify Middle East Trading LLC is a UAE-based industrial supplier and stockist of structural steel sections in carbon steel and high-strength low-alloy grades. From offices in Abu Dhabi and Dubai we support EPC contractors, fabricators, plant procurement teams and project owners in oil and gas, petrochemical, refining, power generation, water and infrastructure.
Our structural steel range covers beams and columns to EN 10365 and ASTM A992, channels, angles and T sections, hollow sections to EN 10210, EN 10219 and ASTM A500, hot-rolled bars, and grating and handrails for platforms. We source the sections, grades, lengths and finishes your design calls for, with EN 10204 3.1 certificates and heat-number traceability.
ADNOC structural steel supplier and Saudi Aramco structural steel supplier support
Projects in the UAE, Saudi Arabia and the wider GCC often reference ADNOC or Saudi Aramco specifications, approved manufacturer lists and inspection requirements. Gasify reviews these requirements against the steel you need, coordinates the documentation and inspection called for by the order, and supports the RFQ from technical clarification to delivery. Approval status is never assumed. Requirements are confirmed against each project's documents.
IPE, HEA, HEB and W-shape beam and column supplier
IPE and IPN beams, HEA, HEB and HEM columns, UB and UC sections, and ASTM A992 W shapes are supplied in S275, S355, A36 and A572 Gr 50 grades, with toughness grades J0, J2 and K2 where the design requires them. HEB columns and IPE beams are the usual pairing for pipe rack and process structure frames.
Channels, angles and hollow sections
UPN, UPE and PFC channels serve purlins, bracing and supports. Equal and unequal angles serve trusses and brackets. Square, rectangular and circular hollow sections in hot-finished and cold-formed forms serve trusses, columns and architectural steel.
Galvanised and painted structural steel
For the Gulf coastal and industrial environment, sections can be supplied blasted and primed, painted to an ISO 12944 system or hot-dip galvanised to EN ISO 1461, on enquiry. The coating choice follows the corrosivity category and design life stated in the project specification.
Grating, handrails and platform accessories
Steel grating, checkered plate, handrails, ladders and stair treads for platforms and walkways can be supplied with the structural steel in carbon steel or galvanised finish, to the load class and bar spacing on your datasheet.
Structural steel with plates, pipes and fittings in one package
Structural steel rarely travels alone. Gasify can consolidate sections with steel plates, steel pipes, fittings, flanges and valves in a single package, with phased deliveries to the UAE, GCC, Middle East, Africa and South Asia. Explore how we work on our project supply page or read about oil and gas supply.
11 / FAQ
Structural steel supply questions.
Are you a structural steel supplier and stockist in the UAE?
Gasify combines UAE-based supplier and stockist support with international mill and manufacturer sourcing. Availability depends on section, grade, size, length and quantity, so current stock is confirmed for each RFQ.
Can you supply structural steel to ADNOC and Saudi Aramco project specifications?
Gasify supports procurement against project material requisitions and client specifications, including ADNOC and Saudi Aramco requirements where the project calls for them. Approved manufacturer and vendor list requirements are reviewed for each project. Gasify does not represent an approval status unless it is formally documented.
Which structural steel products do you supply?
The range covers beams, H columns, channels, angles, T sections, hollow sections, flat, round and square bars, grating, handrails and platform accessories, and cut-to-size, coated and fabricated structural steel on enquiry.
What is the difference between IPE, HEA and HEB sections?
IPE beams are lighter and have narrower flanges, suited to beams in bending. HEA and HEB are wide-flange H sections for columns and heavily loaded members. For the same depth, HEB has thicker flanges and web than HEA and carries higher loads. Weights per metre for common sizes are in the weight chart on this page.
What do S275JR, S355J2 and K2 mean?
S275 and S355 give the minimum yield strength in MPa. The letters JR, J0, J2 and K2 give the Charpy impact test: JR is 27 J at +20 °C, J0 is 27 J at 0 °C, J2 is 27 J at −20 °C and K2 is 40 J at −20 °C. Pick the grade to suit the minimum service temperature and the design code.
Is ASTM A36 the same as S275?
They are close in use but not identical. A36 has a minimum yield of 250 MPa and S275 has 275 MPa, and the chemistry and testing differ. The A992 and A572 Gr 50 grades are nearer in strength to S355. Confirm any substitution against the design code and project specification.
What is the difference between hot finished and cold formed hollow sections?
Hot finished hollow sections to EN 10210 are heat treated after forming, giving uniform properties and sharper corners. Cold formed sections to EN 10219 have strain-hardened corners and are produced to wider size ranges. Design codes treat them slightly differently, so the product standard must be stated in the RFQ.
Should structural steel be galvanised or painted?
Hot-dip galvanising gives long-life protection for exposed platforms, supports and coastal steel. Paint systems to ISO 12944 allow site touch-up and colour coding. The choice depends on the corrosivity category, the design life, the member size and the project specification. Closed hollow sections need venting holes for galvanising.
Do you supply bolts, nuts and washers with the steel?
Structural bolting assemblies to ASTM F3125, ISO 898-1 or EN 14399 can be supplied with the sections, on enquiry. Include the grade, finish and quantity in the RFQ.
Can you supply cut, drilled or fabricated steel?
Cut-to-length, drilled, blasted, primed, painted and galvanised steel is available on enquiry, and fabricated items such as pipe rack members can be quoted against drawings. Send drawings or a cutting list with grade and quantity.
What tests and certificates come with the steel?
Sections are supplied with EN 10204 3.1 mill test certificates showing the heat numbers. Impact tests, UT, Z-grade tests, coating inspection reports, EN 10204 3.2 certification and third-party inspection can be coordinated where the project specifies them.
How do I request a quotation for structural steel?
Send your MTO, BOQ or drawings with section designation, grade and standard, length, quantity, coating or finish, required tests and certificates, and delivery location. The procurement team reviews the requirement and responds with a quotation.
Do you deliver structural steel outside the UAE?
Yes. Gasify coordinates delivery from the UAE to the GCC, wider Middle East, Africa and South Asia, subject to product, quantity, destination and logistics requirements. Include the delivery location in your RFQ.
12 / START A REQUIREMENT
Send your steel list. We'll build the supply route.
Share your MTO, BOQ, drawings or cutting list with the delivery location. Our procurement team will review sections, grades, finishes and documentation, then coordinate sourcing, quotation and delivery.
PHONE / WHATSAPP+971 58 580 9068
SERVINGUAE · GCC · Middle East · Africa · South Asia
